4xPad Wood
Electrónica en vivo y espacialización /
Live electronics and spatialization
Características / Features
Acoustics

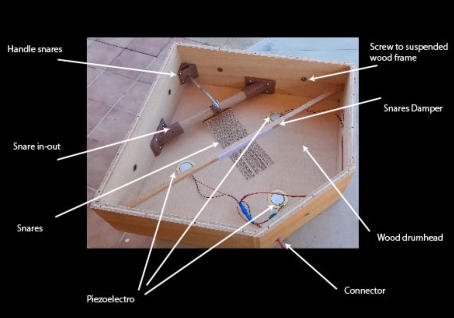

4 Wood toms
4 Güero

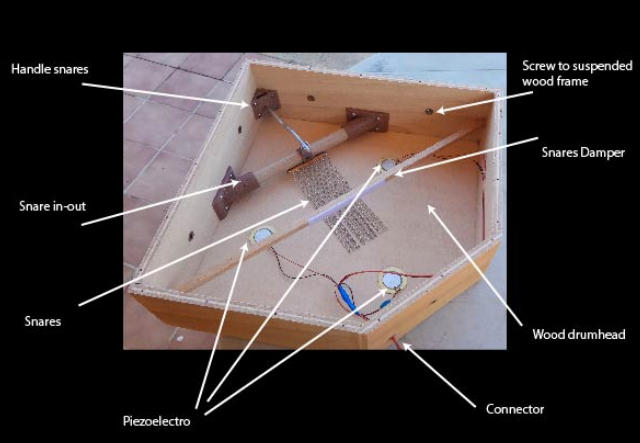

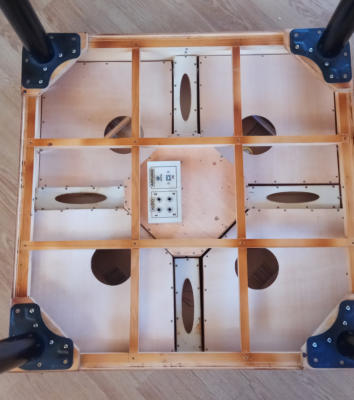

Cada instrumento se halla suspendido en la estructura de madera (véanse las
fotografías de construcción) /Any instrument it´s suspended inside the wood structure
(see the construccion report)
Medidas / Measures: 90x 90 x 90 x 25 (W-L-H)
Eletronics
3 Piezoelectric condenser microphones for every Wood Tom, with Selector
1 Piezoelectric condenser microphone for any Güero

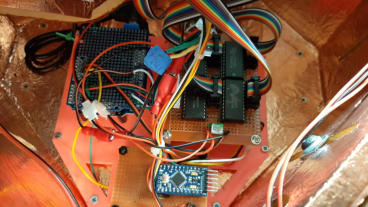

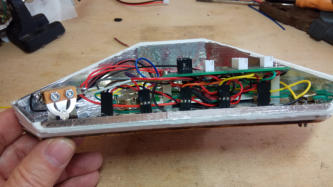

4 Independent Interfaces with two Arduino modules (Arduino uno & Arduino pro-mini)
(directly connected to Mac or PC with Max app via USB 2.0 (dont need additional drivers))

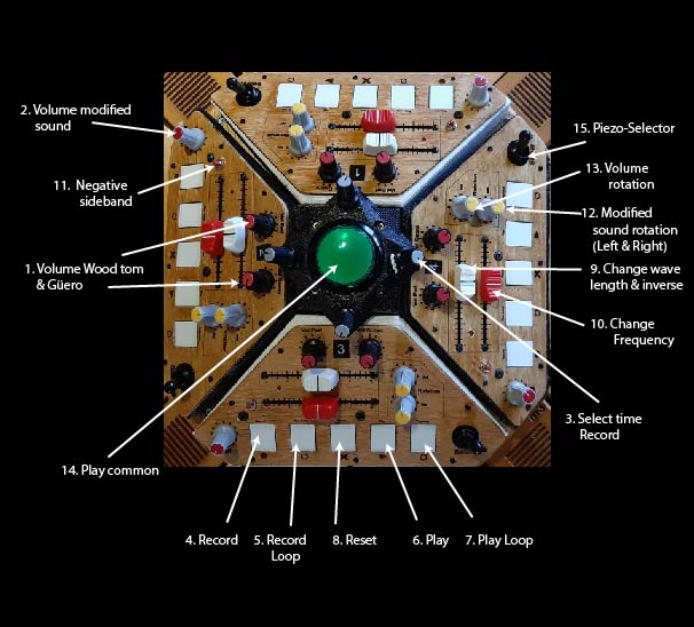

Comandos intependientes para cada Wood PAd / Independent commands
(Wood tom & Güero):
1. Independent volume Wood tom& Güero potentiometer
2.- Volume of modified sound potentiometer
3.- Select time Record potentiometer
4.- Capactitive Record button
5.- Capactitive Record Loop button
6.- Capactitive Play button
7.- Capactitive Play Loop button
8.- Reset button
9.- Change wave length & inverse slider
10.-Change Frequency slider
11.- Negative sideband button
12.- Modified sound rotation potentiometer (Left & Right)
13.- Volume rotation potentiometer
14.- Play common for the 4xPad Wood
15.- Piezo-electro selector

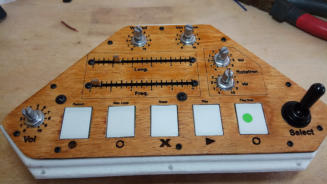

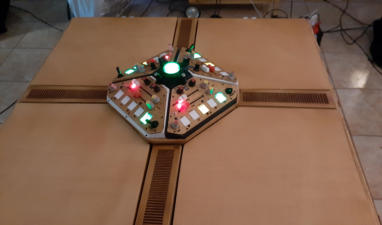

Módulo principal / Main Module

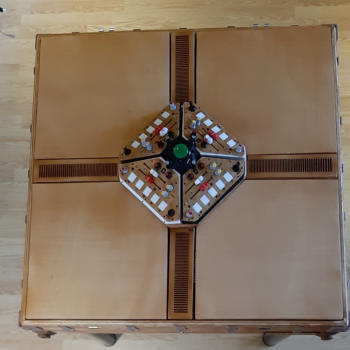

4xPad Wood
Wood tom
Güero
Piezoelectro inside Güero

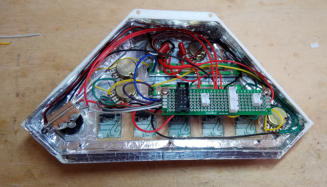

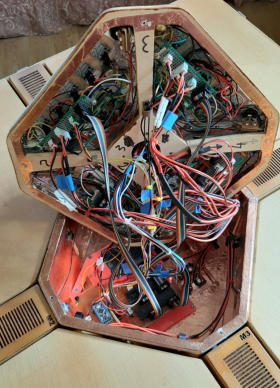

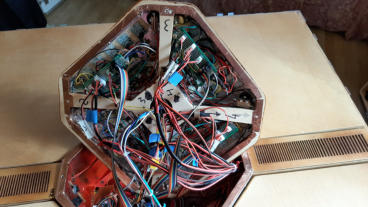

Electronics

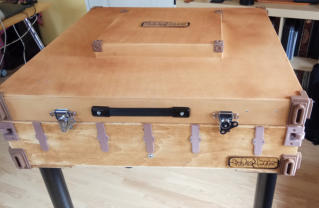

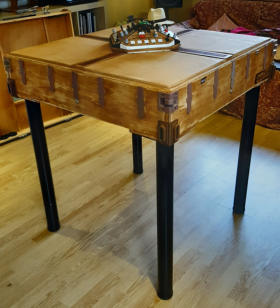

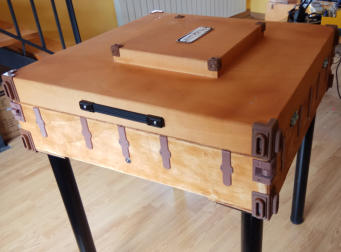

Frame
Qué es 4xPad Wood ? /What is the 4xPad Wood?

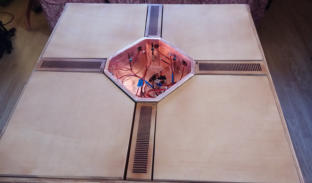

Es un instrumento construído completamente en madera, combinando un soporte y
estructura que contiene 4 tom-toms de madera (con o sin snares) y 4 güeros.
Comprende 4 espacios en los que cada intérprete puede accionar dichos instrumentos,
junto a una interface que dispara el patch de sonido, que se halla diseñado en Max
Cycling. Se conecta vía USB al Mac o PC. El instrumento es cuadrafónico, por lo que
precisa de 4 vías para que funcione correctamente (se aconseja una amplificación 4+1)
Puede ser tocado simultáneamente por un máximo de 4 intérpretes.
La gama de sonidos que se puede llegar a obtener es enorme, siendo el propio intérprete
quien interactúa con la electrónica, sin necesidad de terceros.
El hecho de que el sonido sea natural hace que el intérprete pueda reconocer
rápidamente los mecanismos de la electrónica, puesto que se comporta como una
ampliación de su técnica básica.
El sistema emplea Arduino como base del hardware de conexión al ordenador o
computadora, a la que se conecta directamente sin necesidad de drivers adicionales.
4xPad Wood it´s an instrument made entirely of wood, combining a frame and a
structure that contains 4 wooden tom toms (with or without snares) and 4 güeros.
It contains 4 spaces in which each player can operate these instruments, together
with an interface that triggers a sound patch designed with Max Cycling. It
connects to a computer (Mac & PC) via USB (the instrument is quadraphonic, so it
requires a 4-way to work properly (4 + 1 amplification is recommended)
It can be played simultaneously by a maximum of 4 players. The range of sounds
that you can obtain is enormous, as the player interacts directly with the
electronics, without the need of a third party.
The fact that it has a natural sound, it helps the player quickly recognise the
mecanism of the electronics, as it behaves as an magnifier of it´s basic technique.
The system uses Arduino as the basis of the computer connection hardware. It
connects directly and needs no additional drivers.
